Submersible UV System
What is Submersible UV System?
A submersible UV system is a device that disinfects water by being submerged UV System directly into the tank by emitting UVC rays. UVC technology is very effective at inactivating microorganisms such as algae, bacteria, viruses, and protozoa etc. However, it does not remove physical impurities such as dust or suspended particles, nor does it change the colour, taste, or odour of water.
Applications
- Water storage tanks.
- Cooling towers.
- Fishponds and aquaculture.
- Fountains and decorative water features
- Rainwater harvesting tanks
- Wastewater treatment tanks

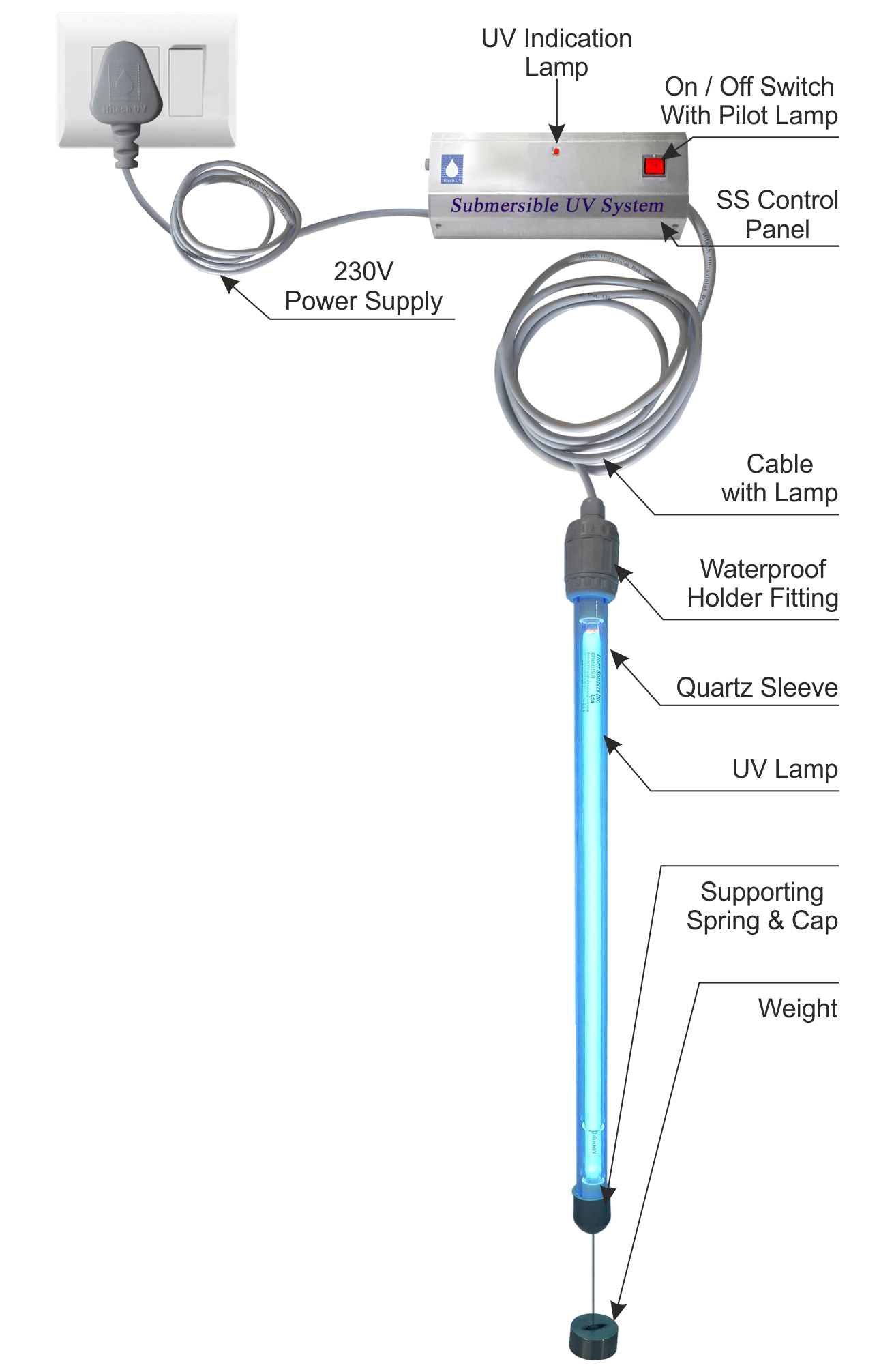

Design & Construction
- UV Lamp: Emits short-wavelength UVC light (usually 253.7 nm) for effective microbial inactivation.
- Quartz Sleeve: Made from high-purity fused silica, providing a waterproof casing that protects the UV lamp from water contact while ensuring maximum UV transmission.
- Electronic Ballast: Regulates energy supplied to the UV lamp, ensuring consistent output. Includes a power indicator, lamp status lights, and failure indicator. Typically located outside water.
- Cable & Seal: Waterproof cable and fittings ensure safe power delivery under submerged conditions.
- Power Supply: 230V 50Hz Single-phase.
Key Benefits
UV Submersible Lamp
- High-quality UV lamps designed for energy efficiency and long-lasting performance (up to 16,000 working hours).
- High-transparency quartz provides optimal conditions for germicidal UV performance.
- Electronic ballast maintains a stable power supply to the UV lamp, ensuring uniform and reliable UV output.
- Continuous disinfection — water flow is not required.
- Chemical-free disinfection for safe and eco-friendly operation.
- Simple installation — can be placed directly in tanks.
- Long-lasting and energy-saving electronic ballasts.
- Low maintenance.
- Highly cost effective.

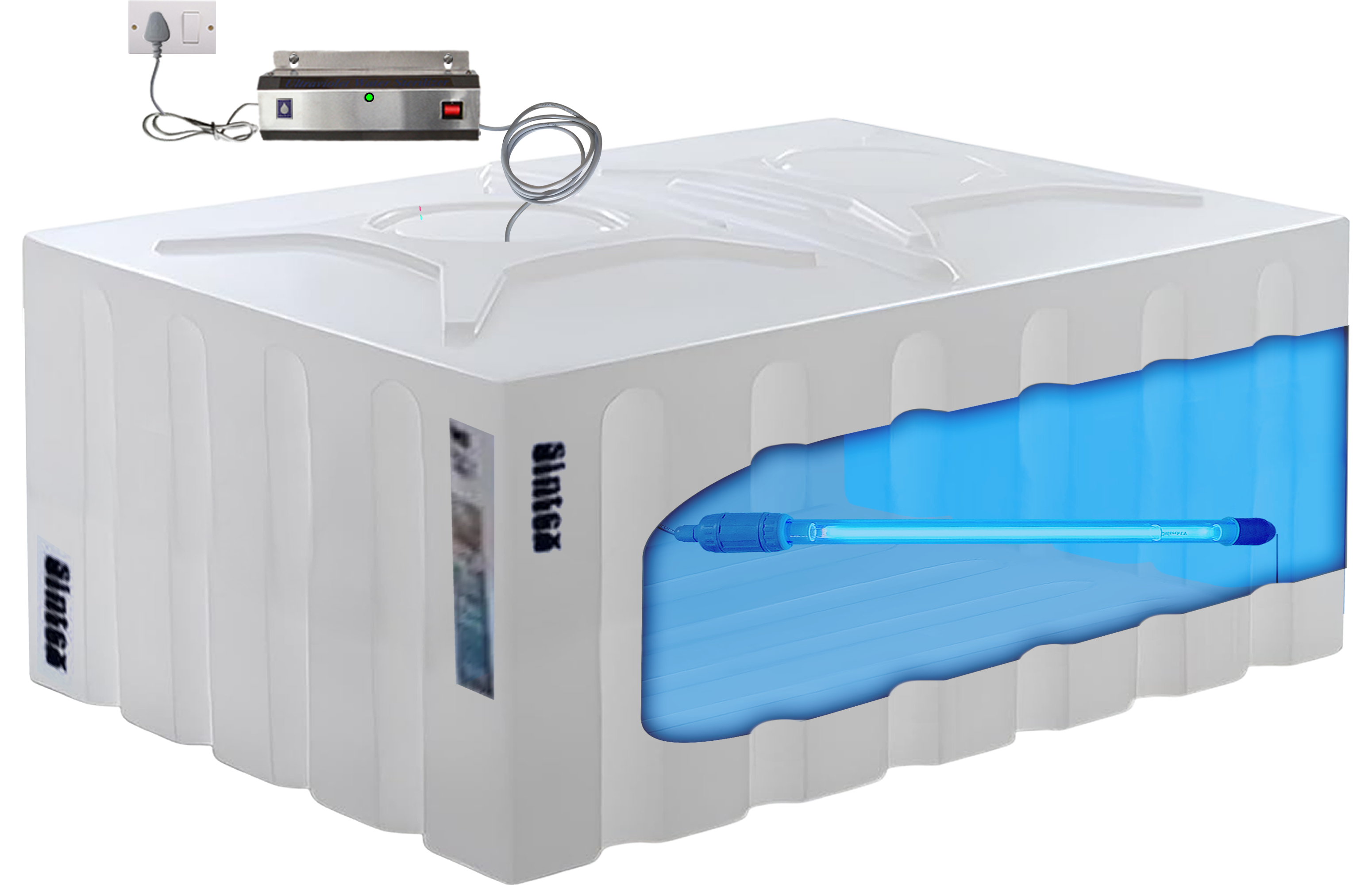

Residence Water Storage Tank
UV Submersible System
Industrial Water Storage Tank
Submersible UV System
Submersible UV Water System
for Pond
320w*10 UV lamps Submersible
UV System
320w*40 UV lamps Submersible
UV System
CAUTION: Do Not Use The Lamp Directly On Skin, Pets Or Plants. Do Not Look Directly at a ‘Lit’ UV Lamp with naked eyes.
